Hydraulic truck mounted cranes 14000kg Knuckle Boom XCMG

Hydraulic truck mounted cranes 1400kg Knuckle Boom XCMG

Quick Details:

Name: Knuckle Boom Crane Brand: XCMG

Max. Lifting Capacity: 14000 kg Max. Lifting Moment: 35 t.m

Max. Oil Flow of Hydraulic System: 63 L/min Max. Lifting height: 11meters

Crane Weight: 4800 kg Oil Tank Capacity: 220L

Specifications:

Description:

Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.

XCMG is the first company to develop newer design loader crane in China, shared more than 50% of the Chinese crane market for many recent years by the help of advanced design, good quality, attentive service and competitive price.

Together we define your needs and make the crane to match your request in every detail. The lifting capacity of our loader cranes spans from 1 to 25 ton and outreach over 26 meters.

Knuckle boom crane SQ14ZK4Q is used for lifting 6.3tons, moment is 13.23T.M.

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Knuckleboom cranes have the ability to easily load and unload materials in just about any possible situation.

­

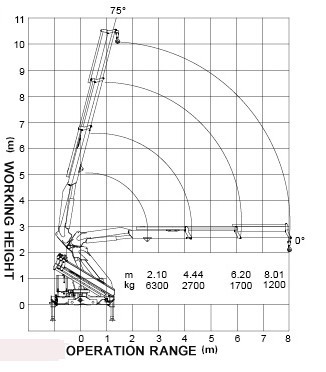

Dimension Drawing:

Competitive Advantage:

1, Advanced development & analysis means make sure design is very reliable

2, Higher lifting capacity with tour connected bar mechanism

3, Flange telescopic boom coupling technology

4, Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation

5, The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity

6, Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling
